Pre-Configured Universal Patching Cabinet — Catalogue Page 1.2.1

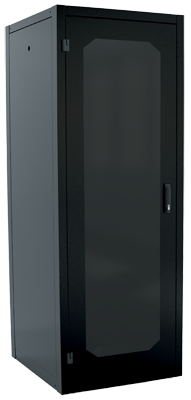

Pre-Config 30" UNIVERSAL CABINET Incl:
• Lockable smoked acrylic front door
• Lockable louvered rear door
• 2 Solid side panels
• 1x pair (2pcs) Mounting rails (Tapped #10-32)
• Hardware Package: (pkg of 24) mounting screws
• Cable access in top and bottom of cabinet

GANGING VERSION Available shipped less the side panels and c/w ganging kits. Add Suffix '-G' To part number (e.g. RFM-303683-U-19-B-G)

PART NUMBER

RFM-304890-U-19-B
RFM-304883-U-19-B

RFM-304290-U-19-B
RFM-304283-U-19-B
RFM-304272-U-19-B
RFM-304259-U-19-B
RFM-304235-U-19-B

RFM-303690-U-19-B
RFM-303683-U-19-B
RFM-303672-U-19-B
RFM-303659-U-19-B
RFM-303635-U-19-B

RFM-303083-U-19-B
RFM-303072-U-19-B
RFM-303059-U-19-B
RFM-303035-U-19-B

RFM-302483-U-19-B
RFM-302472-U-19-B
RFM-302459-U-19-B
RFM-302435-U-19-B


PART DESCRIPTION

19" EIA Cabinet — 30.150"W x 48.150"D x 90"H
19" EIA Cabinet — 30.150"W x 48.150"D x 83"H

19" EIA Cabinet — 30.150"W x 42.150"D x 90"H
19" EIA Cabinet — 30.150"W x 42.150"D x 83"H
19" EIA Cabinet — 30.150"W x 42.150"D x 72"H
19" EIA Cabinet — 30.150"W x 42.150"D x 59"H
19" EIA Cabinet — 30.150"W x 42.150"D x 35"H

19" EIA Cabinet — 30.150"W x 36.150"D x 90"H
19" EIA Cabinet — 30.150"W x 36.150"D x 83"H
19" EIA Cabinet — 30.150"W x 36.150"D x 72"H
19" EIA Cabinet — 30.150"W x 36.150"D x 59"H
19" EIA Cabinet — 30.150"W x 36.150"D x 35"H

19" EIA Cabinet — 30.150"W x 30.150"D x 83"H
19" EIA Cabinet — 30.150"W x 30.150"D x 72"H
19" EIA Cabinet — 30.150"W x 30.150"D x 59"H
19" EIA Cabinet — 30.150"W x 30.150"D x 35"H

19" EIA Cabinet — 30.150"W x 24.150"D x 83"H
19" EIA Cabinet — 30.150"W x 24.150"D x 72"H
19" EIA Cabinet — 30.150"W x 24.150"D x 59"H
19" EIA Cabinet — 30.150"W x 24.150"D x 35"H



Click here to view 24" Universal Cabinet Configuration


UL 2416 Listed
