Two Post Rack Assemblies




PART NUMBER MOUNT HEIGHT RU's
RFM-1948-RB 19" 90.00 48U
RFM-1944-RB 19" 83.00 44U
RFM-1938-RB 19" 72.50 38U
RFM-1924-RB 19" 48.00 24U
RFM-2348-RB 23" 90.00 48U
RFM-2344-RB 23" 83.00 44U
RFM-2338-RB 23" 72.50 38U
RFM-2324-RB 23" 48.00 24U

Features holes tapped 10-32 UNF to EIA-310-D 19 standard on single, front side of both rails.
Load capacity up to 2000 LBS.

 Product Resources

 [PDF]  Quick Reference Page:[EN]  [FR]

[PDF]  Product Data Sheet:[DOWNLOAD]
Two Post Rack - Tapped Both Sides




PART NUMBER MOUNT HEIGHT RU's
RFM-1948-RB-TBS 19" 90.00 48U
RFM-1944-RB-TBS 19" 83.00 44U
RFM-1938-RB-TBS 19" 72.50 38U
RFM-1924-RB-TBS 19" 48.00 24U
RFM-2348-RB-TBS 23" 90.00 48U
RFM-2344-RB-TBS 23" 83.00 44U
RFM-2338-RB-TBS 23" 72.50 38U
RFM-2324-RB-TBS 23" 48.00 24U

Features holes tapped 10-32 UNF to EIA-310-D 19 standard on single, front side and back of both rails.
Load capacity up to 2000 LBS.

 Product Resources

 [PDF]  Quick Reference Page:[EN]  [FR]

[PDF]  Product Data Sheet:[DOWNLOAD]
Two Post Rack - Cage Nut Style Front Side




PART NUMBER MOUNT HEIGHT RU's
RFM-1948-RB-SQ 19" 90.00 48U
RFM-1944-RB-SQ 19" 83.00 44U
RFM-1938-RB-SQ 19" 72.50 38U
RFM-1924-RB-SQ 19" 48.00 24U
RFM-2348-RB-SQ 23" 90.00 48U
RFM-2344-RB-SQ 23" 83.00 44U
RFM-2338-RB-SQ 23" 72.50 38U
RFM-2324-RB-SQ 23" 48.00 24U

Features square holes (0.375") UNF to EIA-310-D 19 standard for Cage Nuts and Server rails, incl. 1 bag (24 pcs) RFM-CN/unit.
Load capacity up to 2000 LBS.

 Product Resources

[PDF]  Quick Reference Page:[EN]  [FR]

[PDF]  Product Data Sheet:[DOWNLOAD]


Two Post Rack - Cage Nut Style Front and Back




PART NUMBER MOUNT HEIGHT RU's
RFM-1948-RB-TBS-SQ 19" 90.00 48U
RFM-1944-RB-TBS-SQ 19" 83.00 44U
RFM-1938-RB-TBS-SQ 19" 72.50 38U
RFM-1924-RB-TBS-SQ 19" 48.00 24U
RFM-2348-RB-TBS-SQ 23" 90.00 48U
RFM-2344-RB-TBS-SQ 23" 83.00 44U
RFM-2338-RB-TBS-SQ 23" 72.50 38U
RFM-2324-RB-TBS-SQ 23" 48.00 24U

Features square holes (0.375") UNF to EIA-310-D 19 standard for Cage Nuts and Server rails, incl. 1 bag (24 pcs) RFM-CN/unit.
Load capacity up to 2000 LBS.

 Product Resources

 [PDF]  Quick Reference Page:[EN]  [FR]

[PDF]  Product Data Sheet:[DOWNLOAD]


OPTIONS FOR TWO POST RACKS

Combination PDU and Cable Lashing Brackets




PART NUMBER WIDTH DESCRIPTION
RFM2-PCM-S-B 3.00 PDU Cable Manager, Single-sided
RFM2-PCM-D-B 5.50 PDU Cable Manager, Double-sided

Unique Combination PDU / Cable Lashing Brackets that can be installed flat or at 90 degrees.

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]

[PDF]  Assembly Instructions:[DOWNLOAD]


Finger Style Cable Managers - Horizontal




PART NUMBER DEPTH RMU (U) COLOUR
RFM2-191-HCM-F 4.38 1U BLACK
RFM2-192-HCM-F 4.38 2U BLACK
RFM2-193-HCM-F 4.38 3U BLACK

• Provides neat cable routing for premise cables
• Finger style design
• Available in 1U, 2U, and 3U heights
Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM-191D-HCM 2.40 1U
RFM-192D-HCM-TD 2.40 2U
RFM-194D-HCM-TD 2.40 4U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Finger Style Cable Managers - Horizontal






PART NUMBER DEPTH RU'S
RFM-191D-HCM-F 3.00 1U
RFM-192D-HCM-F 3.00 2U

Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Cable Managers - Horizontal







PART NUMBER DEPTH
RFM-0U-HCM-19 3.00
RFM-0U-HCM-19-5 5.00

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Rack Vertical Cable Managers  [for RFM Racks]




PART NUMBER DEPTH WIDTH RU's
RFM-RVCM5-48 5.43 5.00 48U
RFM-RVCM8-48 5.43 8.00 48U
RFM-RVCM10-48 5.43 10.00 48U
RFM-RVCM-B 5.43 5.15 44U
RFM-RVCMG-B 5.43 8.15 44U
RFM-RVCM-B-10 5.43 10.00 44U
RFM-RVCM-B-12 5.43 12.00 44U
RFM-RVCM-B-72 5.43 5.15 38U
RFM-RVCMG-B-72 5.43 8.15 38U
RFM-RVCM-B-48 5.43 5.15 24U
RFM-RVCM-B-RWF 5.43 5.15 18U

Vertical Cable Manager for RFM Racks

 Product Resources

[PDF]  Product Data Sheet:[DOWNLOAD]

[PDF]  Install / Assemble:[DOWNLOAD]


High Density Vertical Cable Managers - Single Sided  [for RFM RACKS]




PART NUMBER WIDTH DEPTH* RU's
RFM-RHDV-48-6-SB 6.00 8.75 48U
RFM-RHDV-48-8-SB 8.00 8.75 48U
RFM-RHDV-48-10-SB 10.00 8.75 48U
RFM-RHDV-45-6-SB 6.00 8.75 45U
RFM-RHDV-45-8-SB 8.00 8.75 45U
RFM-RHDV-45-10-SB 10.00 8.75 45U

Vertical Cable Manager, Single Sided High Density 1U Spaced Fingers, 48RU or 45RU.

*Overall depth includes door

This is a base single VCM with options for Double Sided Kit or rear D-Ring set

 Product Resources
[PDF]  Install / Assemble:[DOWNLOAD]

Product Video


High Density Vertical Cable Managers - Double Sided VCM Kit  [for RFM Racks]



Note:
Shown assembled with Single RHDV and Rear Kit.


PART NUMBER WIDTH DEPTH* RU's
RFM-HDRFK-48-6-SB 6.00 6.15 48U
RFM-HDRFK-48-8-SB 8.00 6.15 48U
RFM-HDRFK-48-10-SB 10.00 6.15 48U
RFM-HDRFK-45-6-SB 6.00 6.15 45U
RFM-HDRFK-45-8-SB 8.00 6.15 45U
RFM-HDRFK-45-10-SB 10.00 6.15 45U

Sold as a rear kit which requires one single sided High Density Vertical Cable Manager (not included with kit).

*Overall depth includes door

Product Resources

[PDF]  Install / Assemble:[DOWNLOAD]

Product Video


High Density Vertical Cable Managers - Single Sided w/rear D-Ring set  [for RFM Racks]




Note:
shown assembled with single RHDV & rear D-Ring set.



PART NUMBER DEPTH* WIDTH - ADJ. INSTALLS ONTO
RFM-HDCRK-6-12-B 4.850 5.00" ~ 11.00" RFM-RHDV-48-xx-SB
RFM-RHDV-45-xx-SB

Sold as a rear kit which requires one single sided High Density Vertical Cable Manager (not included with kit).

*D-Ring Depth

Product Resources

[PDF]  Install / Assemble:[DOWNLOAD]

Product Video
Vertical and Horizontal Grounding Bars








CABINET GROUNDING BARS - VERTICAL MNT.
PART NUMBER WIDTH FITS
RFM2-GB-UNI 1.00 52U, 48U, 45U
RFM2-GB-42 1.00 42U
RFM2-GB-30 1.00 30U
RFM2-GB-17 1.00 17U


RACK GROUNDING BARS - VERTICAL MNT.
PART NUMBER WIDTH FITS
RFM-GBR-UNI 1.00 48U, 44U
RFM-GBR-38 1.00 38U
RFM-GBR-24 1.00 24U


GROUNDING BARS - HORIZONTAL MOUNT
PART NUMBER WIDTH FITS
RFM-HGB-19 1.00 19" EIA


THREADED INSULATOR KIT FOR CABINET GB
PART NUMBER QTY. USE WITH
RFM-GB-4-ISOKIT 4 RFM-GB-UNI,
RFM-GB-42
RFM-GB-3-ISOKIT 3 RFM-GB-30
RFM-GB-2-ISOKIT 2 RFM-GB-17
THREADED INSULATOR KIT FOR RACK GBR
PART NUMBER QTY. USE WITH
RFM-GB-3-ISOKIT 3 RFM-GBR-UNI
RFM-GB-3-ISOKIT 3 RFM-GBR-38
RFM-GB-2-ISOKIT 2 RFM-GBR-24
THREADED INSULATOR KIT FOR HGB-19
PART NUMBER QTY. USE WITH
RFM-GB-2-ISOKIT 2 RFM-HGB-19

Grounding bars for both RFM2 Cabinets or RFM Racks. Isolator kits also listed.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]

[PDF]  Install / Assemble (RFM-GBR-UNI):[DOWNLOAD]

PDF]  Install / Assemble (RFM-GBR-38):[DOWNLOAD]
Overhead Cable Trough For Racks: 5"and 8" width







PART NUMBER DESCRIPTION
RFM-119-HCT-8 HCT 8"W - For 19" Rack
RFM-119-HCT HCT 5"W - For 19" Rack
RFM-123-HCT HCT - For 23" Rack
RFM-RFPR-HCT-23-8 HCT 8"W - For RFPR Rack
RFM-RFPR-HCT-23-5 HCT 5"W - For RFPR Rack
RFM-HCT-J-5 Trough Joiner - 5" Length
RFM-HCT-J-8 Trough Joiner - 8" Length
RFM-HCT-J-10 Trough Joiner - 10" Length
RFM-HCT-J-12 Trough Joiner - 12" Length
RFM-HCT-J-15 Trough Joiner - 15" Length
RFM-HCT-J-18 Trough Joiner - 18" Length
RFM-HCT-5-E End Cap For 5" Trough
(req's p/n RFM-HCT-J-0)
RFM-HCT-8-E End Cap For 8" Trough
(req's p/n RFM-HCT-J-0)
RFM-HCT-J-0 Trough Joiner

Manage all of your network cabling neatly, regardless of cable volumes.
These overhead troughs are available in 5" and 8" widths.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Rack Shelf: Single Sided, Fixed






PART NUMBER DEPTH LOAD CAPACITY
RFM-1909-RFS 9.00 100LBS
RFM-1912-RFS 12.00 100LBS
RFM-1915-RFS 15.00 100LBS
RFM-1921-RFS 21.00 100LBS

Shelf Fits: Cabinets and Racks. 19" Rack Mount.

Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]


Rack Shelf: Double Sided, Fixed






PART NUMBER DEPTH LOAD CAPACITY
RFM-1920-DRFS 20.00 100LBS
RFM-1928-DRFS 28.00 100LBS

Shelf Fits: Cabinets and Racks. 19" Rack Mount.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Rack Shelf: Single Sided, Retractable






PART NUMBER DEPTH LOAD CAPACITY
RFM-1920-RRS 20.00 100LBS

Retractable Rack Shelf — 20" Deep*. 19" Rack Mount.

 Product Resources

 [PDF]  Product Data Sheet:[DOWNLOAD]
Four Post Rack Assemblies



PART NUMBER DEPTH
RFM-FPRK 25 1/2" ~ 42"

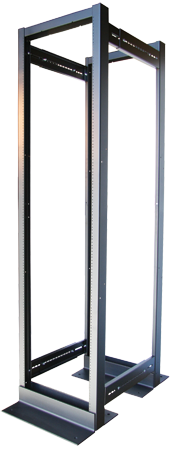

Brackets convert two single racks into one Four Post Rack*

The assembled unit is made up of 2 Single Racks (RFM-1944-RB) and a Bracket Set (RFM-FPRK) which joins the racks together. Brackets provide adjustable depth of 25 1/2” to 42” rail to rail.

Single racks (RFM-1944-RB) are not included, and must be purchased as a separate item.

* Load Capacity: up to 2000LBS

Product Resources

[PDF]  Quick Reference Page:[EN]  [FR]

[PDF]  Product Data Sheet:[DOWNLOAD]
Heavy Duty Rack Kit



PART NUMBER DEPTH
RFM-RHD-KIT 36"

Converts Standard Rack To Heavy Duty Rack
note: 3" caster sets available - installs easily to RFM-RHD-KIT

 Product Resources

[PDF]  Product Data Sheet:[DOWNLOAD]
