Exhaust Fans 4" — Catalogue Page 2.1.1





PART NUMBER

RFM-2-FAN-CAB-24
RFM-4-FAN-CAB-24

PART DESCRIPTION

4" Fan Assy. (Dual) Harness — Fits 24" Cabinet — 105 CFM*
4" Fan Assy (Quad) Harness — Fits 24" Cabinet — 210 CFM*

* 115VAC 50/60HZ 24/22W (Standard per each unit)
   (230VAC 50/60HZ available upon request)

note: 4" Fan Filter availableas a separate item (see page 6.2.7)



Exhaust Fans 10" — Catalogue Page 2.1.1





PART NUMBER

RFM-10-FAN-24
RFM-10-FAN-2-24

PART DESCRIPTION

10" Fan Assy* (Single) Harness — Fits 24" Cabinet — 525 CFM
10" Fan Assy* (Dual) Harness — Fits 24" Cabinet — 1050 CFM

* 115VAC 50/60HZ 24/22W (Standard per each unit)
   (230VAC 50/60HZ available upon request)


Ducted/Chimney Solutions — Catalogue Page 2.1.2





PART NUMBER

RFM-24xxxx-US-19

RFM-EXFANDUCT-24
RFM-EXFAN-DUCT-8-24


RFM-ASK-24xx


RFM-BP series

PART DESCRIPTION

Pre-Configured Universal Server Cabinet - see cat. Pg. 1.2.3

Exhaust Duct (Affixes to Top Of Cabinet - Adjustable Height)
Exhaust Duct (Affixes to Top Of Cabinet - Sq. to Rnd. Trans.)
Scroll down or see cat. Pg 2.1.3

RFM Cabinet Air Stop: Keeps Warm Air From Mixing within
Scroll down or see cat. Pg 2.1.5

Blank Filler Plates
Scroll down or see cat. Pg 6.2.2
Exhaust Duct [Adjustable Height]— Catalogue Page 2.1.3





PART NUMBER

RFM-EXFAN-DUCT-24

PART DESCRIPTION

• Installs On The Top Of The Cabinet
• Prevents Hot Exhaust Air From Circulating Over The Top Of The Cabinet And Mixing With Cold Air
• Adjustable Height
• May Be Deployed With Or Without Any RFM Cooling Fan Option
Exhaust Duct [Square to Round Transition] — Catalogue Page 2.1.3





PART NUMBER

RFM-EXFAN-DUCT-8-24

PART DESCRIPTION

• Installs On The Top Of The Cabinet
• Prevents Hot Exhaust Air From Circulating Over The Top Of The Cabinet And Mixing With Cold Air
• Fixed Height, Square To Round Transition
• May Be Deployed With Or Without Any RFM Cooling Fan Option
Exhaust Fans: High Volume Exhaust Unit — Catalogue Page 2.1.4





PART NUMBER

RFM-EXFAN-2-24
RFM-EXFAN-4-24

PART DESCRIPTION

• High Volume Exhaust Removes Warm Air From Cabinet
• 2-Fan Or 4-Fan Deployment
• Mounts On Top Of 24"W Cabinet
• Deploy With Or Without Any RFM Cooling Fan Option
• Durable Black Textured Powder Coated Finish
• Fan Tray Slides Out For Easy Service

Exhaust Fans: High Volume Exhaust Unit — Catalogue Page 2.1.4





PART NUMBER

RFM-FT-900

PART DESCRIPTION

• Directs Cold Air From Under Cabinet, Up To The Front Of Cabinet
• Mounts On Bottom Of Cabinet
• Requires 4U Space
• 2 Fans (@ 420CFM Each Unit)
• Durable Black Textured Powder Coated Finish

Air Stop [For RFM Series 24 Cabinets] — Catalogue Page 2.1.5





PART NUMBER

RFM-ASK-2490
RFM-ASK-2483

PART DESCRIPTION

Air Stop For RFM Series 24 Cabinets: 90"h
Air Stop For RFM Series 24 Cabinets: 83"h

Side Car Duct, Duct Side Panel, and Duct Deflector Shelf — Catalogue Page 2.1.10





PART NUMBER

RFM-3683-SCD
RFM-4283-SCD
RFM-4883-SCD

RFM-3683-4-SCD
RFM-4283-4-SCD
RFM-4883-4-SCD

RFM-3683-SCDS
RFM-4283-SCDS
RFM-4883-SCDS

PART DESCRIPTION

Side Car Duct For RFM Series Cabinet 36"d x 83"h
Side Car Duct For RFM Series Cabinet 42"d x 83"h
Side Car Duct For RFM Series Cabinet 48"d x 83"h

Side Car Duct Side Panel For RFM-3683-SCD
Side Car Duct Side Panel For RFM-4283-SCD
Side Car Duct Side Panel For RFM-4883-SCD

Side Car Duct Deflector Shelf For RFM-3683-SCD
Side Car Duct Deflector Shelf For RFM-4283-SCD
Side Car Duct Deflector Shelf For RFM-4883-SCD


This Item is also available for RFM Series Fortress Cabinets, add '-F' to part number.
e.g. RFM-4283-SCD-F


Exhaust Fan Doors [For Cabinets] — Catalogue Page 1.3.4





PART NUMBER

RFM-2483-FAN-DD

PART DESCRIPTION

Remove Hot Air From 24" Wide Densely Populated Cabinets

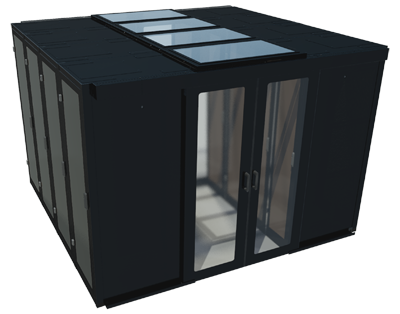

Aisle Containment — Catalogue Page 2.1.7












PART DESCRIPTION






AgileAir Intelligent Ducted Solutions — Catalogue Page 2.2.1





PART NUMBER

RFM-AACD-P
RFM-AACD-10
RFM-AACD-20
RFM-AACD-30

RFM-AACD-CD-8
RFM-AACD-CD-12
RFM-AACD-CD-24
RFM-AACD-CD-48
RFM-AACD-CD-7X
RFM-AACD-CD-13X

RFM-RFC-10
RFM-RFC-20
RFM-RFC-30

RFM-AAIC

PART DESCRIPTION

Passive Unit Chassis C/w Blank Panels
Chassis, Controller, Sensor, And 2 Fan Cartridges For 10Kw
Chassis, Controller, Sensor, And 2 Fan Cartridges For 20Kw
Chassis, Controller, Sensor, And 2 Fan Cartridges For 30Kw

8” Chimney Duct
12” Chimney Duct
24” Chimney Duct
48” Chimney Duct
Expandable Chimney Duct (0” ~ 7”)
Expandable Chimney Duct (0” ~ 13”)

Replacement Fan Cartridge For 10Kw
Replacement Fan Cartridge For 20Kw
Replacement Fan Cartridge For 30Kw

Intelligent Control Unit


Blank Filler Plates - Composite Material — Catalogue Page 6.2.2





PART NUMBER

RFM-BPTL-19-1U
RFM-BPTL-19-2U

PART DESCRIPTION

19" EIA Mount 1U Height
19" EIA Mount 2U Height

Composite material, tool-less, easy 'snap in' installation.

Blank Filler Plates - Steel Material — Catalogue Page 6.2.2





PART NUMBER

RFM-BP19-1U
RFM-BP19-2U
RFM-BP19-4U
RFM-BP19-9U

PART DESCRIPTION

1U High For 19" Mount - Steel
2U High For 19" Mount - Steel
4U High For 19" Mount - Steel
9U High For 19" Mount - Steel

Note: 23" Mount Available On Request
