Two Post Rack Assemblies — Catalogue Page 4.1.1





PART NUMBER

RFM-1948-RB
RFM-1944-RB
RFM-1938-RB
RFM-1924-RB

RFM-2348-RB
RFM-2344-RB
RFM-2338-RB
RFM-2324-RB


PART DESCRIPTION

19" EIA Rack — Standard Floor Mount 90.0"H* (48U)
19" EIA Rack — Standard Floor Mount 83.0"H* (44U)
19" EIA Rack — Standard Floor Mount 72.5"H* (38U)
19" EIA Rack — Standard Floor Mount 48.0"H* (24U)

23" EIA Rack — Standard Floor Mount 90.0"H* (48U)
23" EIA Rack — Standard Floor Mount 83.0"H* (44U)
23" EIA Rack — Standard Floor Mount 72.5"H* (38U)
23" EIA Rack — Standard Floor Mount 48.0"H* (24U)

Features:
Holes tapped 10-32 UNF EIA pattern on single, front side of both rails.

* Load Capacity: up to 2000LBS

Two Post Rack - Tapped Both Sides — Catalogue Page 4.1.1





PART NUMBER

RFM-1948-RB-TBS
RFM-1944-RB-TBS
RFM-1938-RB-TBS
RFM-1924-RB-TBS

RFM-2348-RB-TBS
RFM-2344-RB-TBS
RFM-2338-RB-TBS



PART DESCRIPTION

19" EIA Rack — Standard Floor Mount 90.0"H* (48U)
19" EIA Rack — Standard Floor Mount 83.0"H* (44U)
19" EIA Rack — Standard Floor Mount 72.5"H* (38U)
19" EIA Rack — Standard Floor Mount 48.0"H* (24U)

23" EIA Rack — Standard Floor Mount 90.0"H* (48U)
23" EIA Rack — Standard Floor Mount 83.0"H* (44U)
23" EIA Rack — Standard Floor Mount 72.5"H* (38U)

Features:
Holes tapped 10-32 UNF EIA pattern on both front & back face of both rails

* Load Capacity: up to 2000LBS

Two Post Rack - Cage Nut Style — Catalogue Page 4.1.1





PART NUMBER

RFM-1948-RB-SQ
RFM-1944-RB-SQ
RFM-1938-RB-SQ
RFM-1924-RB-SQ

RFM-2348-RB-SQ
RFM-2344-RB-SQ
RFM-2338-RB-SQ
RFM-2324-RB-SQ


PART DESCRIPTION

19" Eia Rack - Std. Floor Mount 90.0"h* (48U)
19" Eia Rack - Std. Floor Mount 83.0"h* (44U)
19" Eia Rack - Std. Floor Mount 72.5"h* (38U)
19" Eia Rack - Std. Floor Mount 48.0"h* (24U)

23" Eia Rack - Std. Floor Mount 90.0"h* (48U)
23" Eia Rack - Std. Floor Mount 83.0"h* (44U)
23" Eia Rack - Std. Floor Mount 72.5"h* (38U)
23" Eia Rack - Std. Floor Mount 48.0"h* (24U)

Features:
Square holes (0.375") UNF EIA pattern for Cage Nuts and Server rails, incl. 1 bag (24 pcs) RFM-CN/unit.

* Load Capacity: up to 2000LBS

Two Post Rack - Cage Nut Style Both Sides — Catalogue Page 4.1.1





PART NUMBER

RFM-1948-RB-TBS-SQ
RFM-1944-RB-TBS-SQ
RFM-1938-RB-TBS-SQ
RFM-1924-RB-TBS-SQ

RFM-2348-RB-TBS-SQ
RFM-2344-RB-TBS-SQ
RFM-2338-RB-TBS-SQ
RFM-2324-RB-TBS-SQ


PART DESCRIPTION

19" Eia Rack - Std. Floor Mount 90.0"h* (48U)
19" Eia Rack - Std. Floor Mount 83.0"h* (44U)
19" Eia Rack - Std. Floor Mount 72.5"h* (38U)
19" Eia Rack - Std. Floor Mount 48.0"h* (24U)

23" Eia Rack - Std. Floor Mount 90.0"h* (48U)
23" Eia Rack - Std. Floor Mount 83.0"h* (44U)
23" Eia Rack - Std. Floor Mount 72.5"h* (38U)
23" Eia Rack - Std. Floor Mount 48.0"h* (24U)

Features:
Square holes (0.375") UNF EIA pattern for Cage Nuts and Server rails, incl. 1 bag (24 pcs) RFM-CN/unit .

* Load Capacity: up to 2000LBS

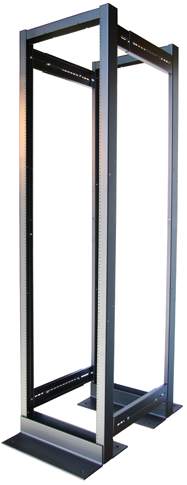

Four Post Rack Assemblies — Catalogue Page 4.1.2




PART NUMBER

RFM-FPRK


PART DESCRIPTION

Brackets convert two single racks into one Four Post Rack*

note: single racks (RFM-1944-RB) are not included, and must be purchased as a separate item. The assembled unit is made up of 2 Single Racks (RFM-1944-RB) and a Bracket Set (RFM-FPRK) which joins the racks together. Brackets provide adjustable depth of 25 1/2” to 42” rail to rail.

* Load Capacity: up to 2000LBS
